Smart 87.6V 6A LiFePO4 Battery Charger Dustproof type for 24S LiFePO4 battery charging

Name: Smart 87.6V 6A LiFePO4 Battery Charger Dustproof type for 24S LiFePO4 battery charging
Brand: SHENZHEN KEYSUN TECHNOLOGY LIMITED
SKU: 00227
Availability: InStock
Rating: 5 (1 reviews)

No.00227

87.6V 6A LiFePO4 Battery Charger >Input Voltage:95-265VAC >Rated Frequency:50/60Hz >Dimension:223*132*62mm >Warranty:3 Years

AC Plug:

AUS

OutPut:

87.6V 6A

GET A QUOTE

Description

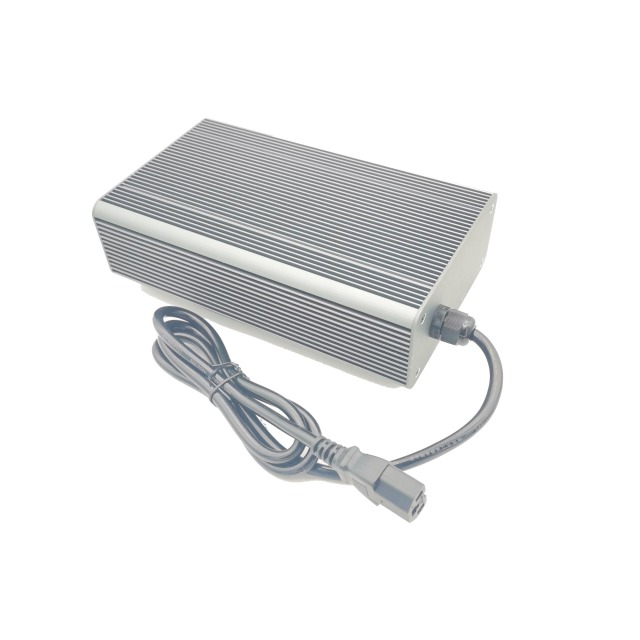

87.6V 6A LiFePO4 Battery Charger
CE、UL、KC、FCC、SAA Certificates etc.
Product details
Input voltage	95V ~ 265Vac / 50Hz
Output rated current	15A	12A	10A	7A	6A
Output voltage range	25.2 ~ 29.4V	42~43.8V	54.6~58.8V	67.2 ~ 72V	84 ~ 87.6V
Battery Nominal Voltage	24V	36V	48V	60V	72V
Output efficiency	≥93%
Output voltage accuracy	1%
Output current accuracy	1%
PFC	≥0.95
Protections	Over current protection, Over voltage protection, Over temperature protection, Short-circuit protection, Re-verse polarity protection, Timing protection
IECEE Test	60335-2-29:2016 ; IEC 60335-1:2010+A1+A2
EMC Test	EN 55014-1:2017 , EN 61000-3-2:2014 , EN 61000-3-3:2013, EN 55014-2:2015
Dimension	22313262mm
More models with different output voltage & current are available

Before charging Read the instruction

Standby:Green LED blink 1S ON,1S OFF
Pre-charge:Red LED always on. Fast charging:Red LED always on. Full:Green LED alwasys on.
Battery re-verse connection:
Red light green light flashes alternately Battery Error or Failure:Red light flashes 4times green light flashes 1time and repeats.
Power failure:Red light flashes

The advantages of our chargerSafe:multi-protection,Over current/Over Voltage/Over Temperature protection, Short Circuit and re-verse polarity protection
Smart:out upon automatic identifying,no output on no-load,visible LED charge status indication
Efficient:charge efficiency 93%-95%
Design features:Dustpfoof or waterproof,Low failure rate,Fully enclosed dustproof structure,metal case strong and durable
Warranty:usingcertified long-life compinents 3 years warranty

Certificate: UL/cUL ETL/cETL RU/cRU FCC CE ROHS SAA C-TICK RCM KC KCC GS TUV CB NOM CCC PSE PSB
