Multiple Channel Triac/Phase-cut Dimmable LED Driver

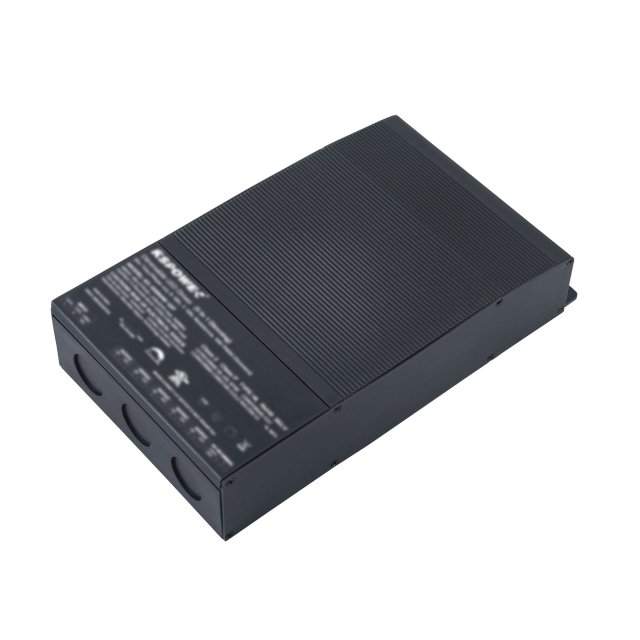

The Multiple 12V 5*60W phase cut dimmable led driver 300 Watt is one multiple channel solution, accept universal AC input voltage range from 100V to 277V, output voltage 12Volt 24Volt optional with greater operating efficiency and PFC function. The phase dim led power supply use low profile metal aluminum case with junction box makes the ac dimmable led power supply solutions for LED strips, LED sign, billboard and landscape lighting. The constant voltage led driver offers 5-channel 60W and meet UL Class 2 Class P SELV listed safety environment protection for indoor or outdoor use, the led lights power supply provide 5 years warranty and outstanding led dimming performance.
Features:
Specification:
Input Voltage | 100~277V AC 47~63Hz | |||
Power Factor | Build in active PFC, typical power factor>0.95, THD<10%@120V Max. load | |||
NO. | KS-300MW-12T | KS-300MW-24T | ||
Output Voltage | 12V | 24V | ||
Rated Current | 5-channel x 5.0A | 5-channel x 2.5A | ||
Rated Power | 300W 5-channel 60W Class 2 (unloaded channels permitted) | |||
Output Dimming Method | Uses PWM method for dimmed low voltage output | |||
Output Ripple (Peak-to-Peak) | <5% | |||
Storage TEMP. Humidity | -40~+80℃(-40°F to 176°F),10~95%RH | |||
Dim Functions | 0-10V, 1-10V, 10V PWM, Resistance dimmers | |||
Dimming Curve | Linear | |||
Flicker | California Title 24 / JA8 |
Reliability:
1. Outdoor-rated NEMA 3R enclosure with corrosion-resistant stainless steel screws
2. Protected with a 5-year warranty
Application:
The multi-channel 0-10V dimmable led power supplies features switching different output mode, can be compatible with more different types of LED lamps, DC-DC design LED fixture, such as MR16, PAR, wall washer, linear lighting, LED strip/type.
Dimming Connect Drawing:
Using TRIAC/Phase cut dimming
1.The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection a phase /Triac dimmer of lighting system.
2.Work with forward phase/leading edge, MLV and reverse phase/trailing edge ,ELV, TRIAC dimmers.
3.Please try to use dimmers with power at least 1.5 times as the output power of the driver.
